Emulex OCe14102 OneConnect 10Gb网卡刷固件|解决断流问题

Linux笔记 Jason 4 months ago (08-16) 55 Views 0 Comments QR code of this page
文章目录[隐藏]

前言

等了半个月从香港寄来的便宜双口万兆网卡,才20欧一块,送到后满心欢喜的换上,结果差点把家里的Proxmox集群搞坏....

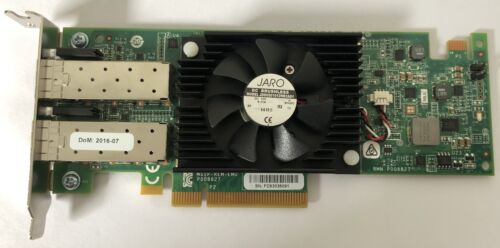

Dell Emulex Dual Port 10Gb SFP Ethernet P90KD RFPC9 Low Profile OCE14102 NIC - Afbeelding 2 van 8
插上之后开机看似一切正常,切换到网络后显示也是万兆的,实际上ping其他节点延迟都在0.1ms以内感觉没啥问题。

root@PVE-BE-105:~# ethtool enp2s0f0
Settings for enp2s0f0:
        Supported ports: [ FIBRE ]
        Supported link modes:   1000baseT/Full
                                10000baseT/Full
        Supported pause frame use: Symmetric
        Supports auto-negotiation: No
        Supported FEC modes: Not reported
        Advertised link modes:  Not reported
        Advertised pause frame use: No
        Advertised auto-negotiation: No
        Advertised FEC modes: Not reported
        Speed: 10000Mb/s
        Duplex: Full
        Auto-negotiation: off
        Port: Direct Attach Copper
        PHYAD: 0
        Transceiver: internal
        Supports Wake-on: g
        Wake-on: g
        Current message level: 0x00000000 (0)

        Link detected: yes

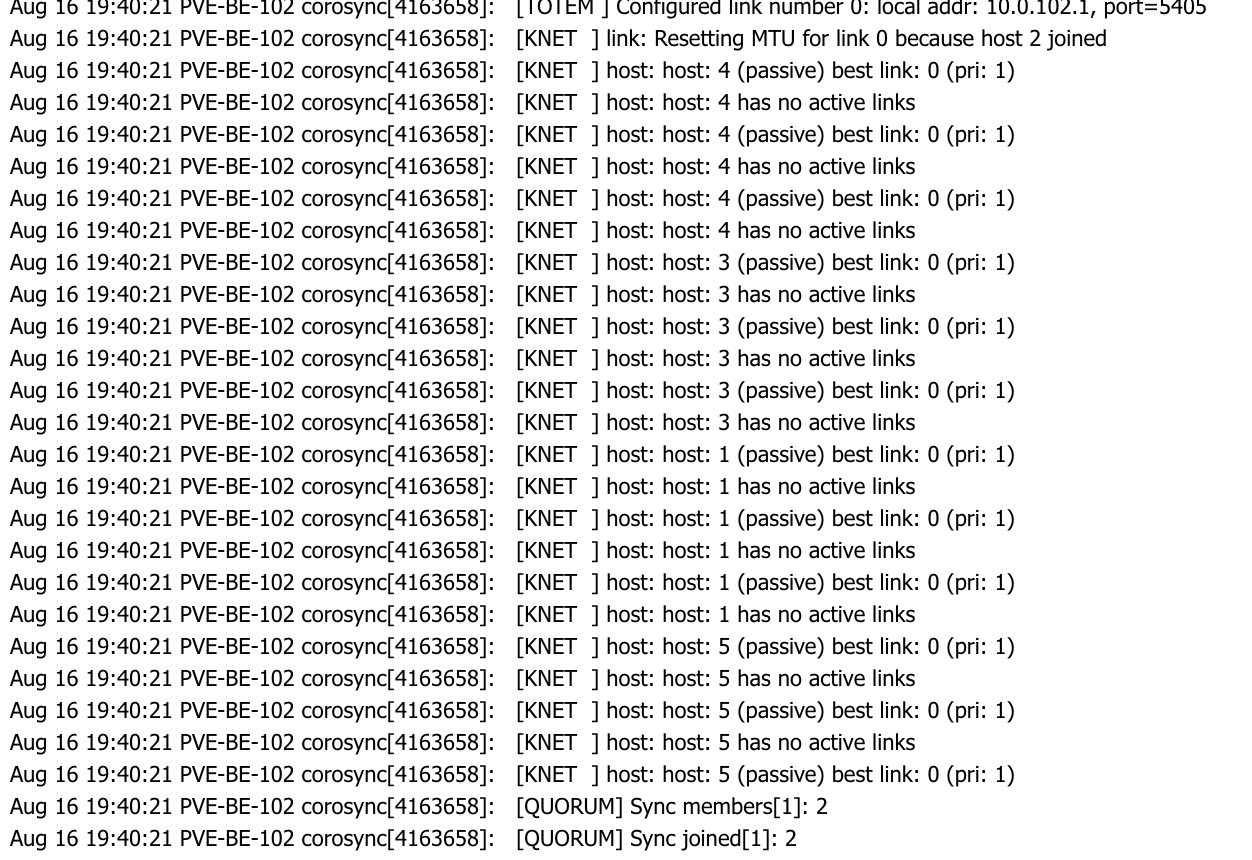

但是等个几分钟再看,发现PVE的节点变灰了,而且pvecluster服务开始不正常了。再过了一会儿整个集群5台机器都不能正常访问PVE的界面了。。。
一开始我以为是这个换了新网卡的节点在重启的时候出了什么问题,于是再次重启节点。节点一关,其他4台立刻恢复正常!!?

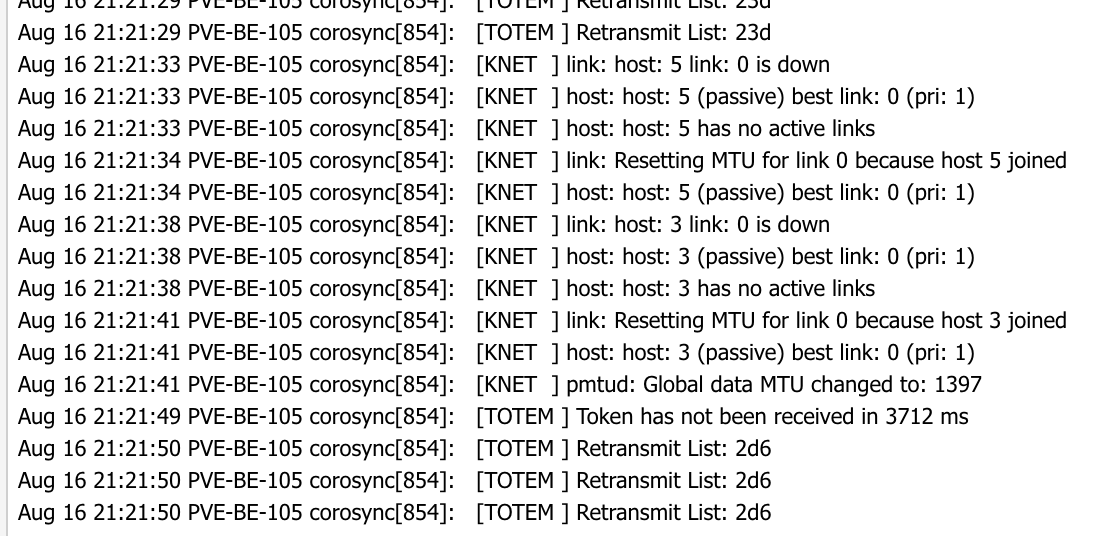

于是折腾了我两个小时查原因,最后发现是网络不停的在断开和重连:

然后我找啊找,一开始是觉得驱动问题,于是把be2net驱动重新装了一遍,还是一样的情况。后面到处翻论坛和博客查到,有说这张卡在debian下有丢包问题,于是我看了一下,果然:

root@PVE-BE-105:~# ethtool -S enp2s0f0
NIC statistics:
 .....
     rx_address_filtered: 31657
 .....

解决办法

ethtool刷入固件

首先看看目前的固件版本,版本是10.2.315.26,据说有问题的是10.3以前的版本:

root@PVE-BE-105:~# ethtool -i enp2s0f0
driver: be2net
version: 6.8.12-1-pve
firmware-version: 10.2.315.26
expansion-rom-version:
bus-info: 0000:02:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: no
supports-priv-flags: yes

然后我去博通的官网下载了oc14-11.2.1153.23.ufi固件:https://docs.broadcom.com/docs/12378837 真的找的我好辛苦啊QAQ
传到服务器上:scp oc14-11.2.1153.23.ufi [email protected]:/root/
然后胆战心惊的开始刷固件:

root@PVE-BE-105:~# ethtool -f enp2s0f0 oc14-11.2.1153.23.ufi 0





Flashing failed: Network is down

果然事情不会这么顺利.......查看dmesg

[14421.792999] be2net 0000:02:00.0: Firmware load not allowed (interface is down)

尝试重启后在不起用网卡、不插入模块的情况下再次刷固件,依旧是一样的情况

专用工具刷入固件

然后我又是一顿搜,在HP的固件支持页面找到了这个刷机工具OneConnect-Flash-12.0.1345.0-x64.iso,据说是只要UEFI启动就可以刷了。
链接: https://support.hpe.com/connect/s/softwaredetails?language=en_US&softwareId=MTX_a36307b55e86403391d3526afd

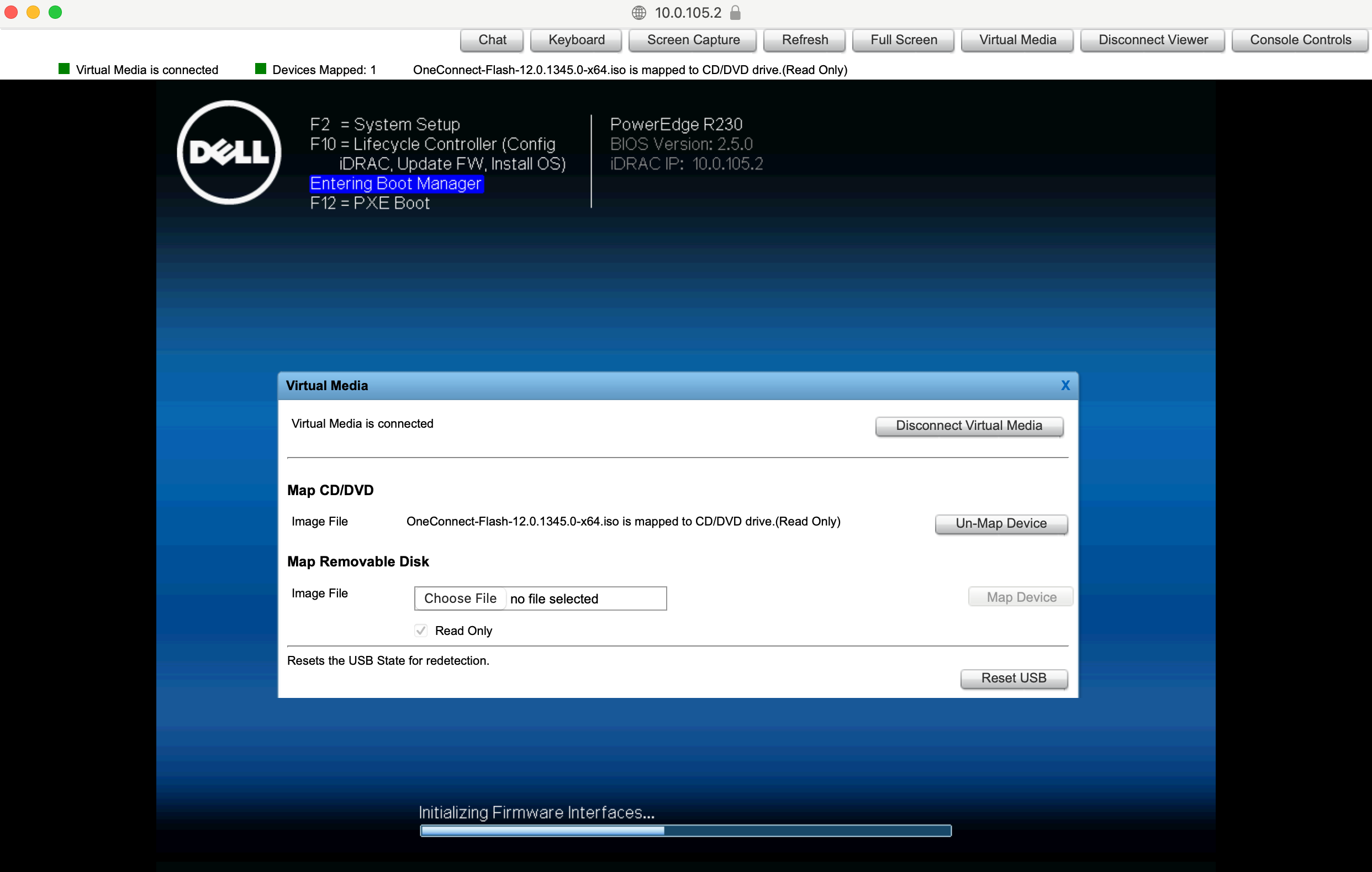

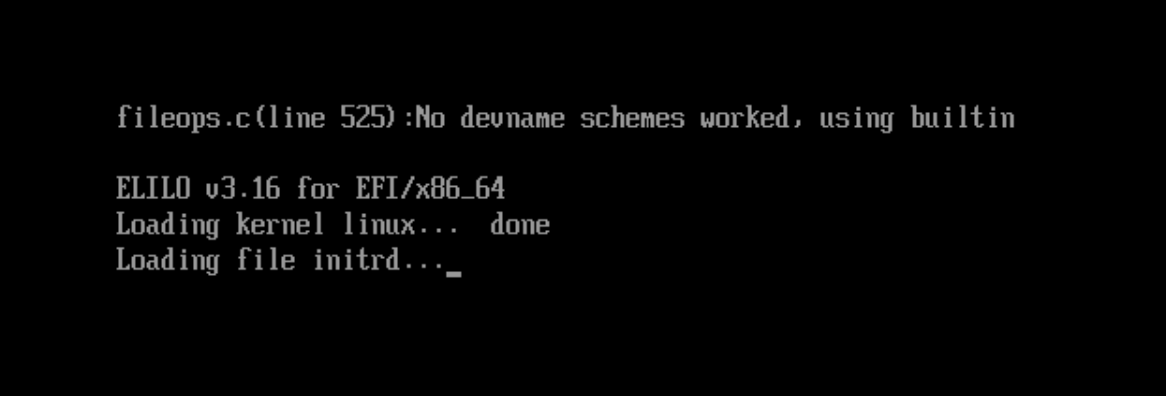

虚拟光驱启动!然后就是漫长的等待,不知道为啥这么慢,卡在这里大概有十分钟:

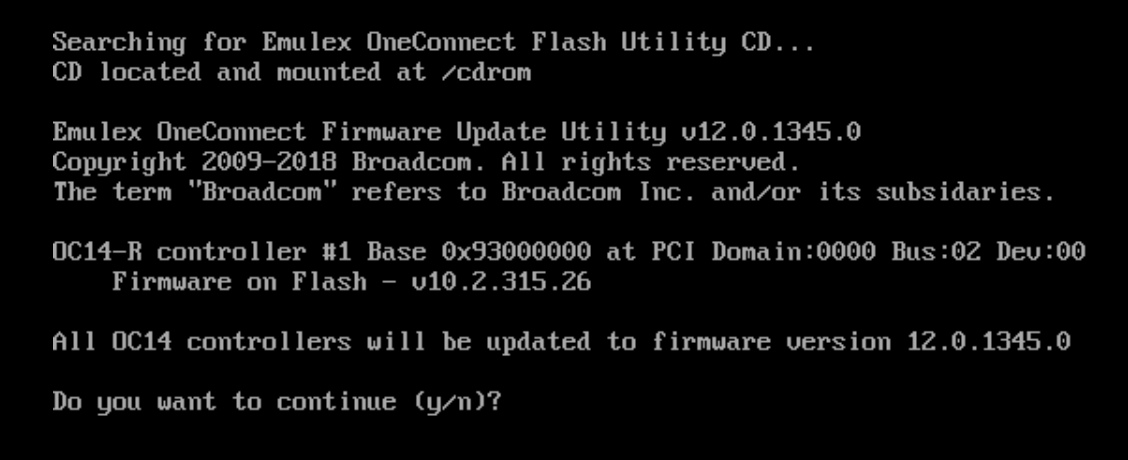

进入刷机系统后交互很简单,监测到当前的网卡信息,问你是否要刷机,输入y
可以看到这里的固件版本和我之前ethtool的一致:10.2.315.26

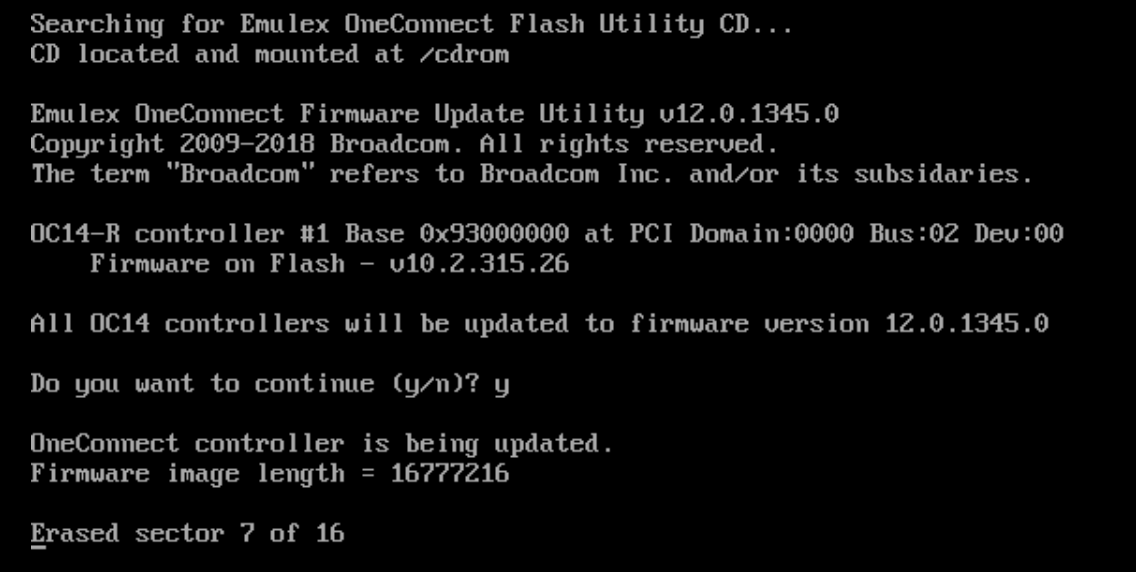

然后就是更加漫长的等待,这里大概有至少20分钟:

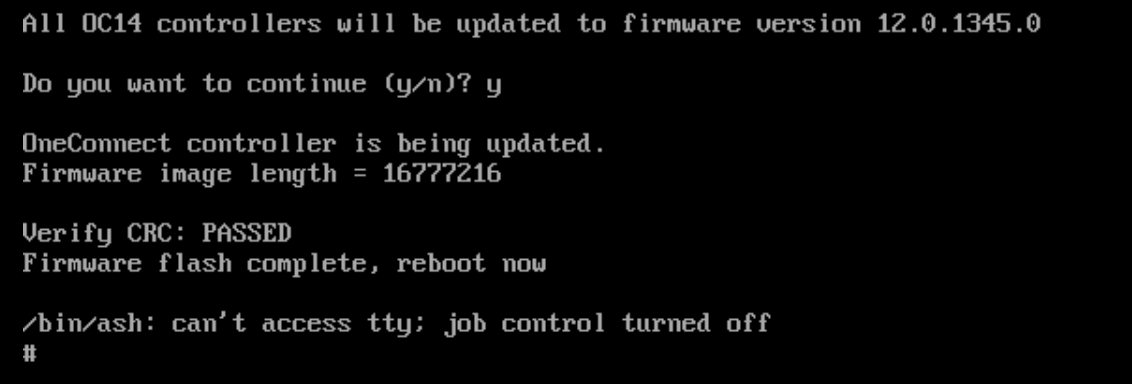

最后完成会给出这样的提示,刷机成功!!!

验证效果

再次重启服务器,首先看一下目前的固件版本:

root@PVE-BE-105:~# ethtool -i enp2s0f0
driver: be2net
version: 6.8.12-1-pve
firmware-version: 12.0.1345.0
expansion-rom-version:
bus-info: 0000:02:00.0
supports-statistics: yes
supports-test: yes
supports-eeprom-access: yes
supports-register-dump: no
supports-priv-flags: yes

然后再来看看状态:

root@PVE-BE-105:~# ethtool enp2s0f0
Settings for enp2s0f0:
        Supported ports: [ FIBRE ]
        Supported link modes:   1000baseT/Full
                                10000baseT/Full
        Supported pause frame use: Symmetric
        Supports auto-negotiation: No
        Supported FEC modes: Not reported
        Advertised link modes:  Not reported
        Advertised pause frame use: No
        Advertised auto-negotiation: No
        Advertised FEC modes: Not reported
        Speed: 10000Mb/s
        Duplex: Full
        Auto-negotiation: off
        Port: Direct Attach Copper
        PHYAD: 0
        Transceiver: internal
        Supports Wake-on: g
        Wake-on: g
        Current message level: 0x00000000 (0)

        Link detected: yes

切换集群的网络到万兆卡后,问题依旧,唉.....又是一天瞎折腾,白干加白干!
