Ceph集群下更换坏盘OSD|全过程

Linux笔记 Jason 1 months ago (12-21) 9 Views 0 Comments QR code of this page
文章目录[隐藏]

前言

Ceph集群大了之后,坏盘是很正常的事,这里记录一下更换坏盘的操作步骤。

正文

发现坏盘

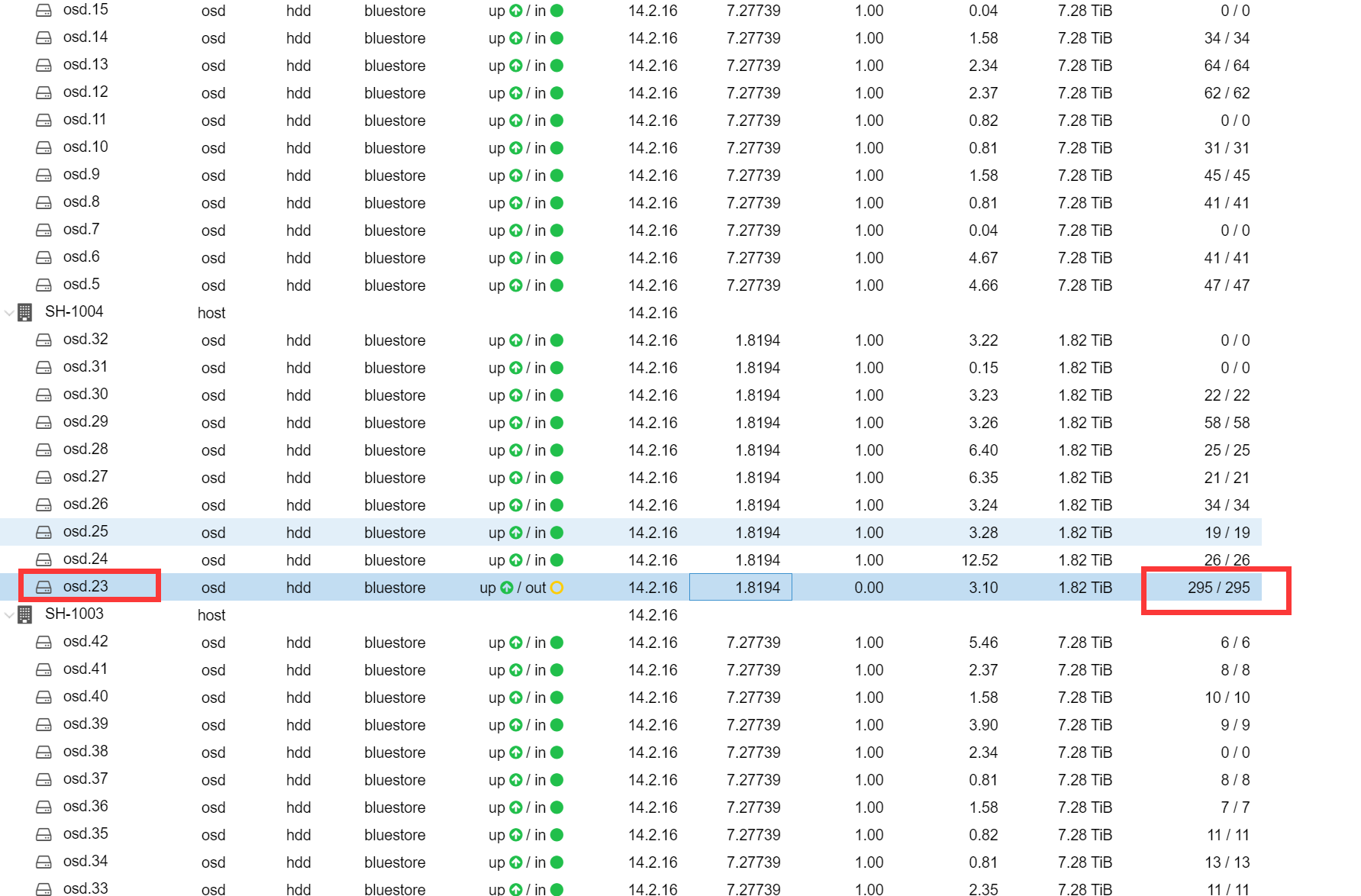

首先是通过ceph perf或者直接在管理面板中查看ceph osd的情况,发现latency很高的盘就是有问题的盘了,如果这个盘的使用量低且延迟高,就应该果断的换掉:

移出坏盘

ceph osd out 23这里的23换成自己的问题OSD编号

停止服务

systemctl stop ceph-osd@23这里的23换成自己的问题OSD编号

移除磁盘

root@SH-1004:~# ceph osd safe-to-destroy osd.23
OSD(s) 23 are safe to destroy without reducing data durability.
#先确认可以安全的移除磁盘,然后再进行操作:
root@SH-1004:~# ceph osd destroy 23 --yes-i-really-mean-it
destroyed osd.23

更换硬盘

首先要用megacli标记这个盘,然后让机房进行操作,第一步是定位这个盘符对应的磁盘序列号:

root@SH-1004:~# smartctl -a /dev/sda -d megaraid,0
smartctl 7.1 2019-12-30 r5022 [x86_64-linux-5.4.34-1-pve] (local build)
Copyright (C) 2002-19, Bruce Allen, Christian Franke, www.smartmontools.org

=== START OF INFORMATION SECTION ===
Vendor:               HP
Product:              MB2000FAMYV
Revision:             HPD7
Compliance:           SPC-3
User Capacity:        2,000,398,934,016 bytes [2.00 TB]
Logical block size:   512 bytes
Rotation Rate:        7200 rpm
Form Factor:          3.5 inches
Logical Unit id:      0x5000c500211c625f
Serial number:        9WM15QAD0000C050EV4F
Device type:          disk
Transport protocol:   SAS (SPL-3)
Local Time is:        Mon Dec 21 20:04:53 2020 CST
SMART support is:     Available - device has SMART capability.
SMART support is:     Enabled
Temperature Warning:  Enabled

=== START OF READ SMART DATA SECTION ===
SMART Health Status: OK
Current Drive Temperature:     0 C
Drive Trip Temperature:        0 C

Elements in grown defect list: 4096

Error Counter logging not supported

Device does not support Self Test logging

然后再用PDlist (MegaCli64 -PDlist -a0)来查看对应的slot:

MegaCli64 -PdLocate -start -physdrv[32:0] -a0

之后offline+亮灯:

MegaCli64 -pdoffline -physdrv[32:0] -a0
MegaCli64 -PdLocate -start -physdrv[32:0] -a0

This article is under CC BY-NC-SA 4.0 license.
Please quote the original link:https://www.liujason.com/article/1125.html
